Alarms
/
Smoke Alarms
/
7010B BRK 120V AC/DC Photo Smoke Alarm
Discontinued
1
/
of
16
7010B BRK 120V AC/DC Photo Smoke Alarm
SKU:
7010B
Hardwired smoke alarm with replaceable battery backup. AC 120V Interconnectable with Silence and Latching features. Includes Photoelectric smoke sensing technology and a 9V Carbon Zinc battery.

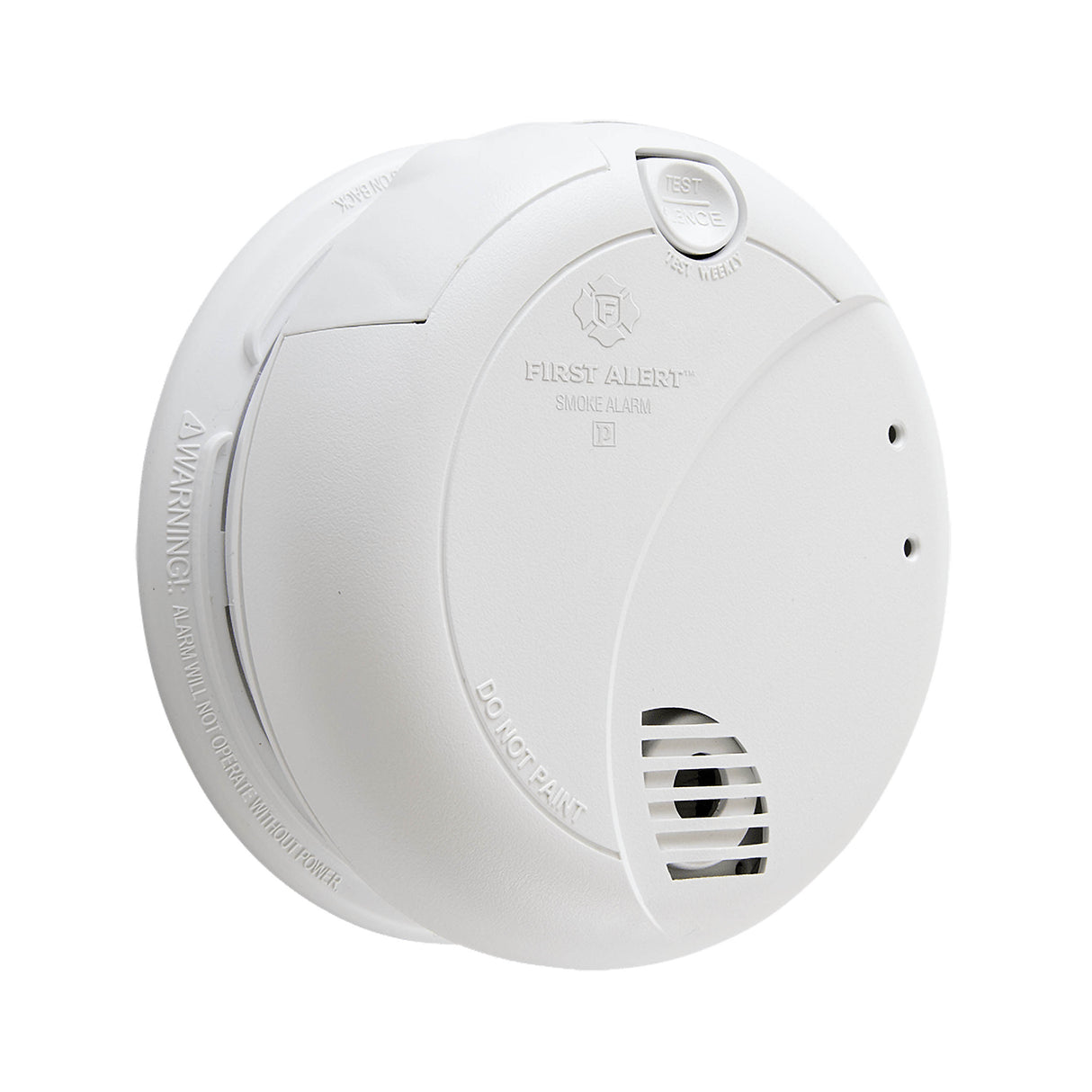

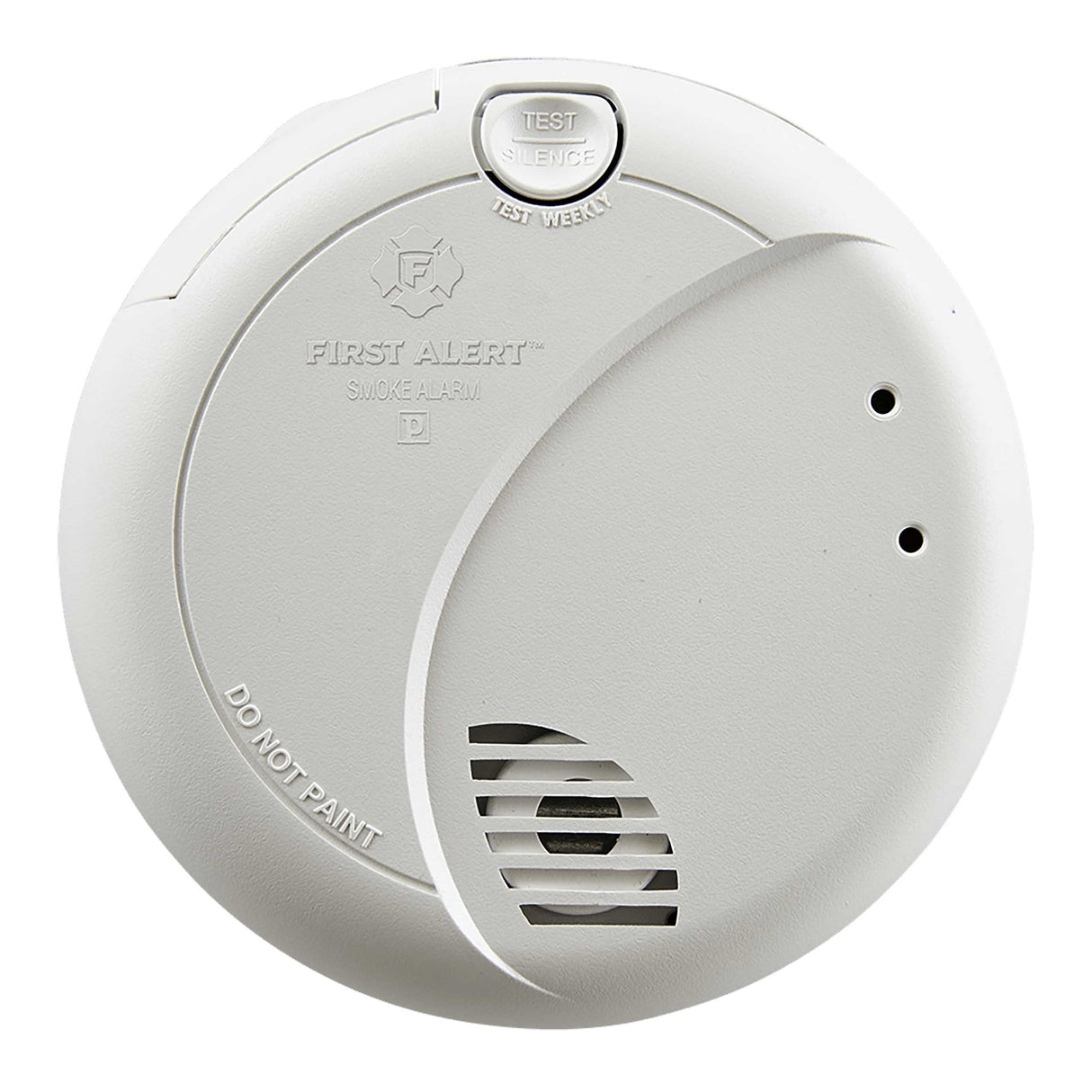

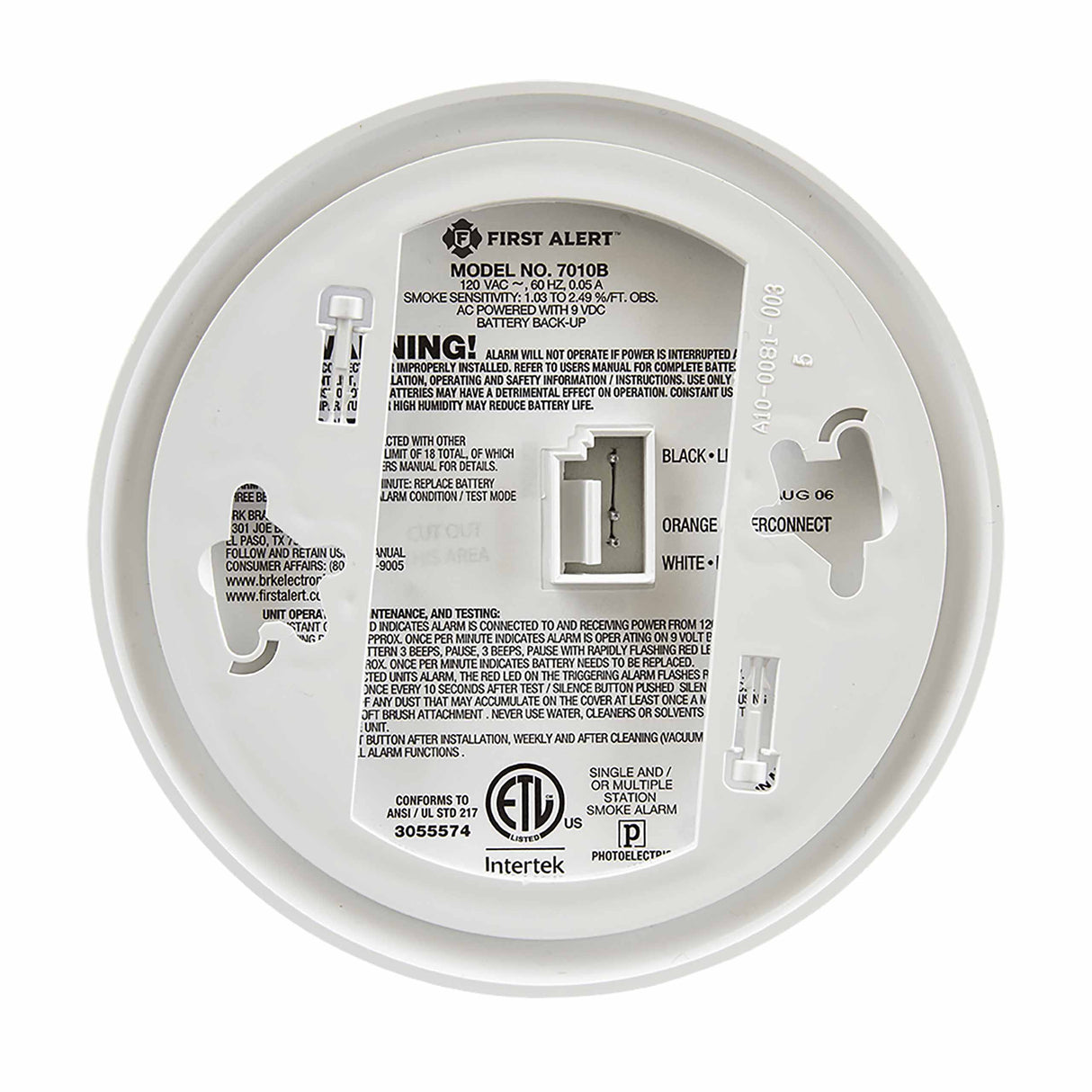

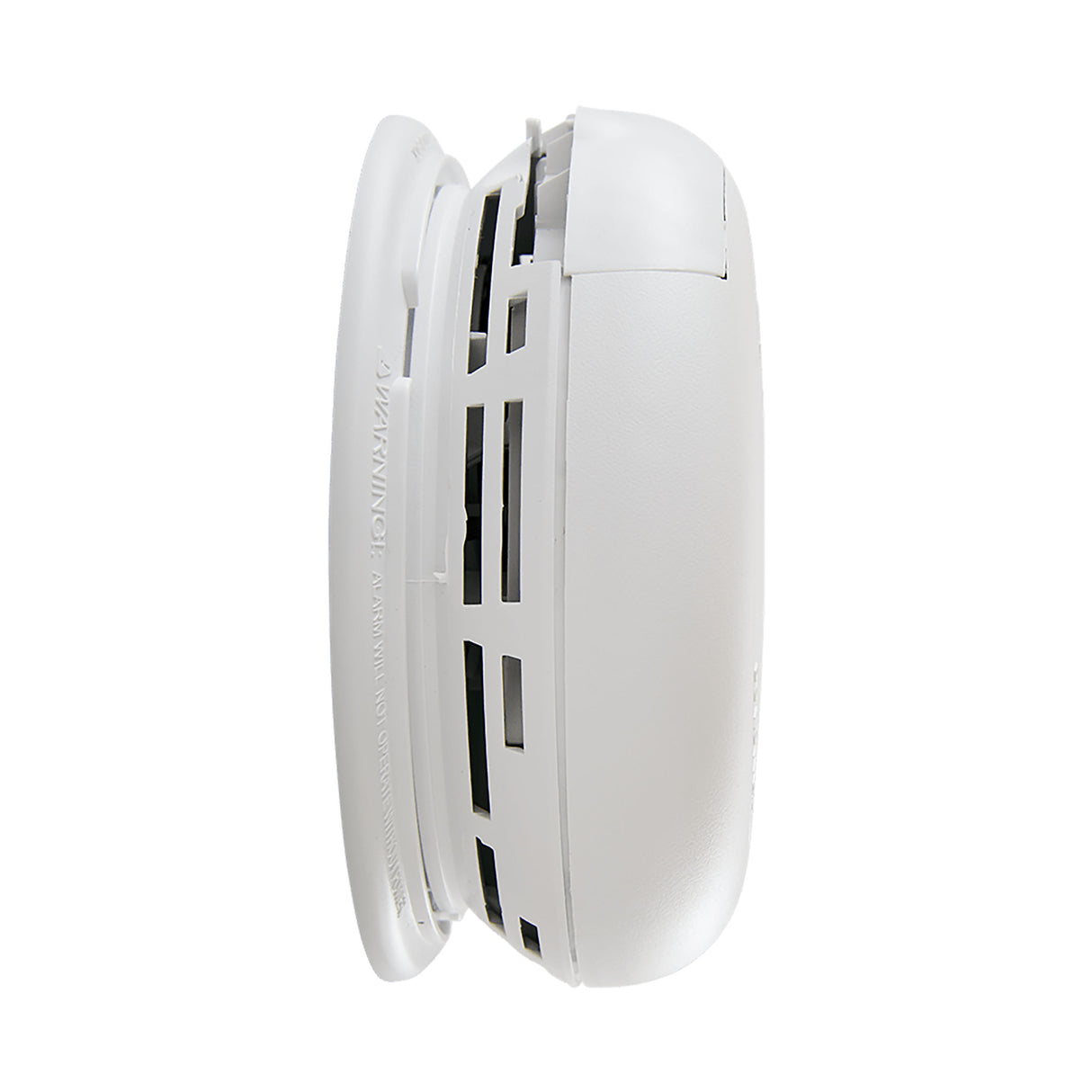

- 7010B Hardwired Photoelectric Smoke Alarm with Battery Backup

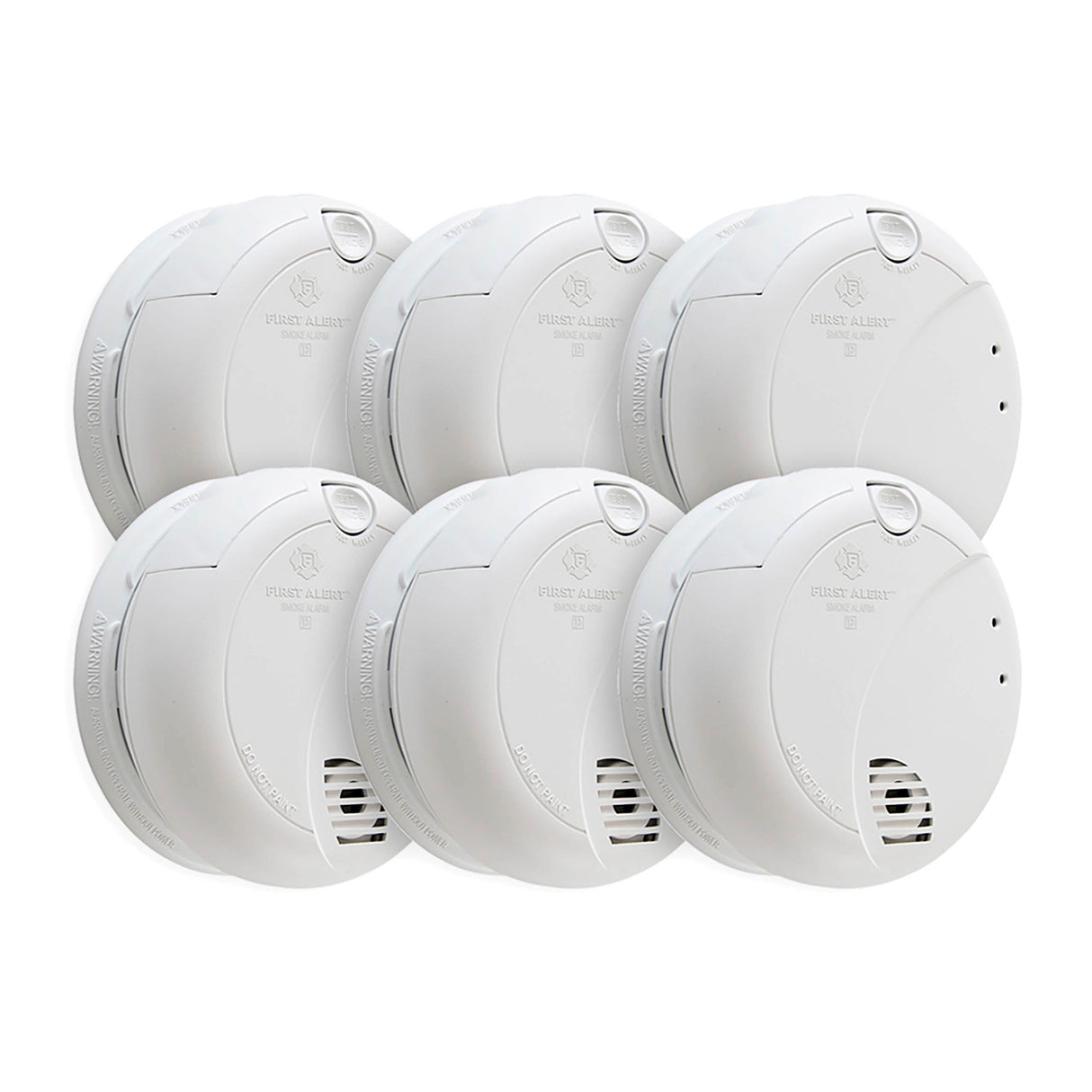

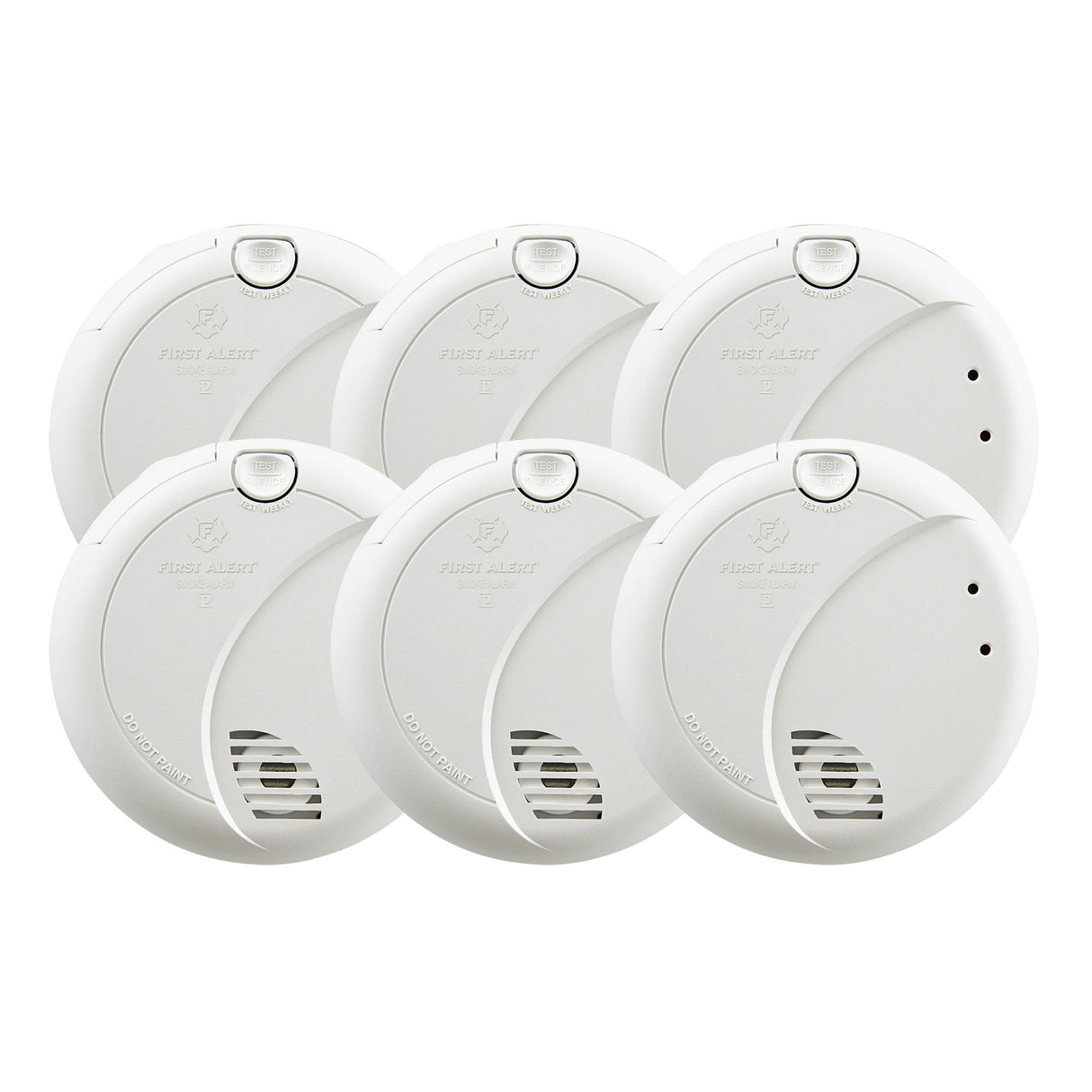

- 7010B6CP Hardwired Photoelectric Smoke Alarm with Battery Backup
7010B BRK 120V AC/DC Photo Smoke Alarm - 7010B is backordered and will ship as soon as it is back in stock.
7010B BRK 120V AC/DC Photo Smoke Alarm
SKU: 7010BResources
Sell (0)
File Name
Date Posted
Size
Date Posted
Size
Install (0)
File Name
Date Posted
Size
Date Posted
Size
Audio Files (0)
File Name
Date Posted
Size
Date Posted
Size
Specifications
BRK Model
7010B
Replacement Model
SM100V-AC
Type
Smoke Alarm
Sensor Type
Photoelectric
Sensor Information
Smoke particles of varying number and size are produced in all fires. For maximum protection, use both ionization and photoelectric sensing technologies. Ionization alarms are generally more sensitive to fast flaming fires and photoelectric alarms are generally more sensitive to smoldering fires.
Sound Level
85dB at 10 feet
Product Height
1.9 in
Product Length
5 in
Product Weight
0.7 lb
Product Width
5 in
Power Source
Hardwired
Operating Voltage
120V AC 60Hz w/ 9V battery backup
Hardwired Interconnectivity
Yes
Battery Replaceable
Yes
Battery Backup
Yes
Backup Battery Type
Carbon Zinc
Backup Battery Size
9V
Number of Batteries
1
Color
White

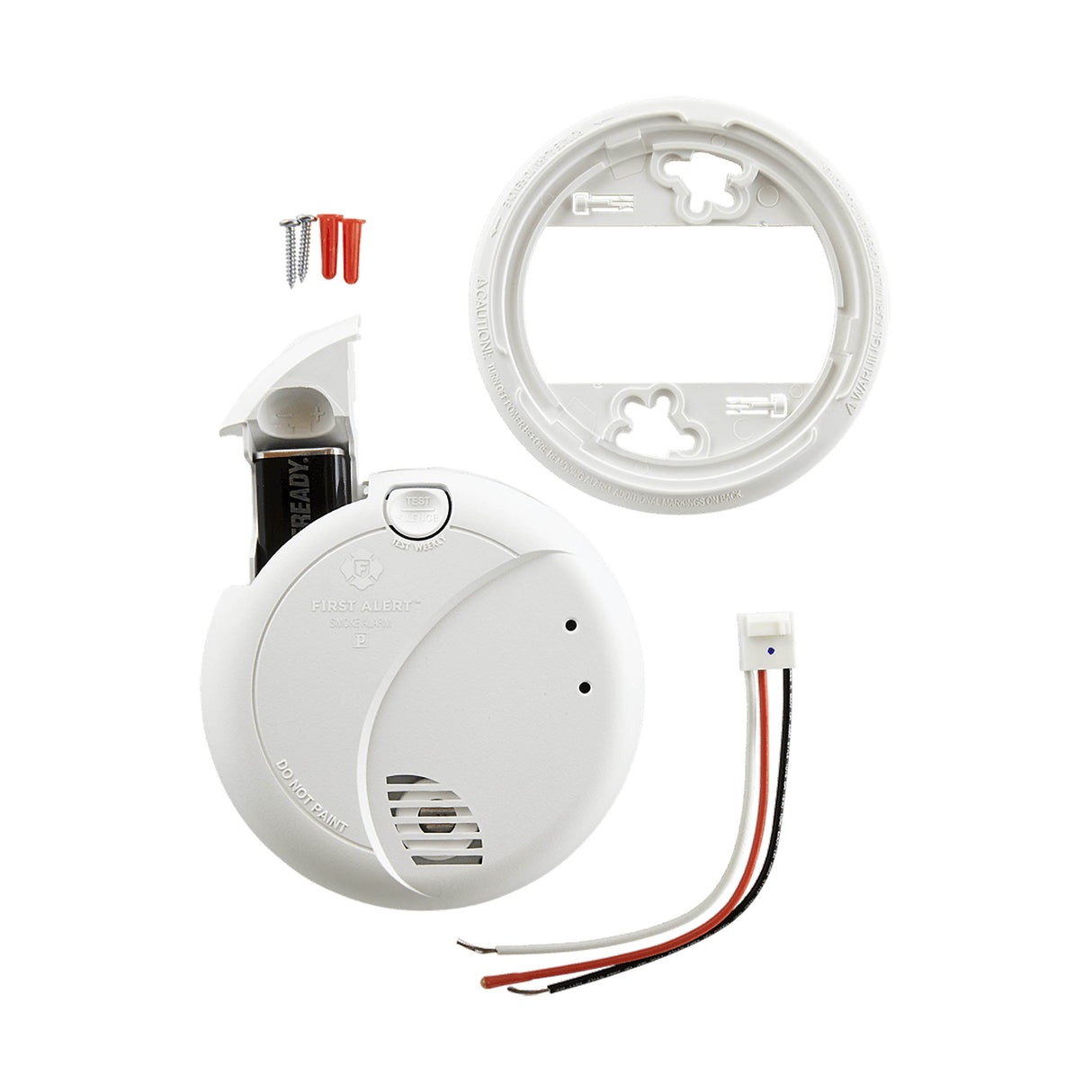

Includes
Hardwire Adaptor Plug; Universal Mounting Bracket
Ambient Operating Temperature (Min)
40 °F; 4 °C
Ambient Operating Temperature (Max)
100 °F; 38 °C
Operating Relative Humidity (Min)
10% (RH)
Operating Relative Humidity (Max)
95% (RH)
UPC Case
10029054112016
UPC Number
029054112019
Warranty
10 Years Limited
Features
Battery Backup; Hardwire Quick Connect Plug Included
Approvals and Standards
Listed to UL217 Standard
Specifications
BRK Model
7010B
Replacement Model
SM100V-AC
Type
Smoke Alarm
Sensor Type
Photoelectric
Sensor Information
Smoke particles of varying number and size are produced in all fires. For maximum protection, use both ionization and photoelectric sensing technologies. Ionization alarms are generally more sensitive to fast flaming fires and photoelectric alarms are generally more sensitive to smoldering fires.
Sound Level
85dB at 10 feet
Product Height
5.75 in
Product Length
14.38 in
Product Weight
4.3 lb
Product Width
5.25 in
Power Source
Hardwired
Operating Voltage
120V AC 60Hz w/ 9V battery backup
Hardwired Interconnectivity
Yes
Battery Replaceable
Yes
Battery Backup
Yes
Backup Battery Type
Carbon Zinc
Backup Battery Size
9V
Number of Batteries
1
Color
White
Includes
Hardwire Adaptor Plug; Universal Mounting Bracket
Ambient Operating Temperature (Min)
40 °F; 4 °C
Ambient Operating Temperature (Max)
100 °F; 38 °C
Operating Relative Humidity (Min)
10% (RH)
Operating Relative Humidity (Max)
95% (RH)
UPC Case
60029054003630
UPC Number
029054003638
Warranty
10 Years Limited
Features
Battery Backup; Hardwire Quick Connect Plug Included
Approvals and Standards
Listed to UL217 Standard
Product Overview
- Recommended for installation outside areas that are prone to nuisance alarms such as kitchens, bathrooms and utility rooms.
- Single button test/silence
- 9V Battery Backup
- Optipath 360 TechnologyTM - patented technology provides 360 degrees of direct access to the smoke sensor.
- Perfect Mount - allows for easy alignment of alarm

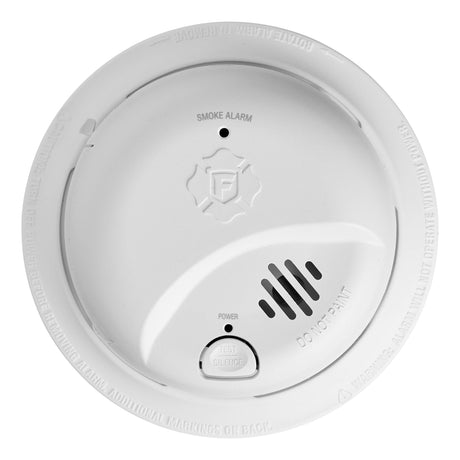

Replacement Products
